Crushing gold bearing ores in mills similar in principle to flour mills
Caption

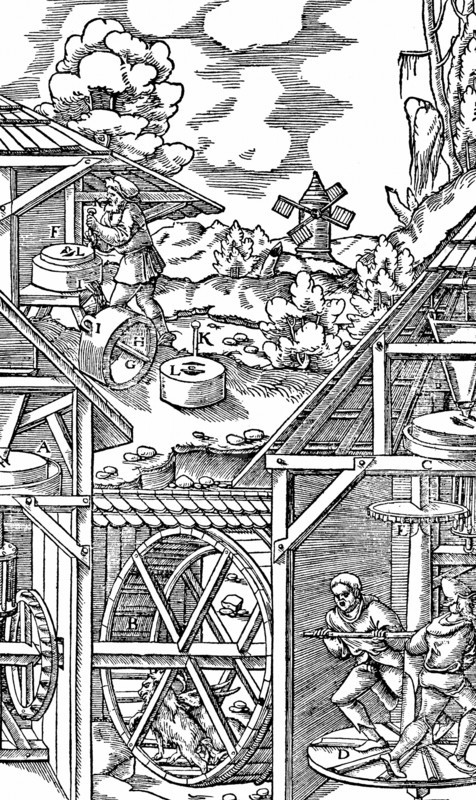

Crushing gold bearing ores in mills similar in principle to flour mills. Bottom left goats in treadmill; horizontal power transferred to mill, A, through crown-and-pinion. Bottom right men turn capstan and power transferred through tooth-and-pinion
From Agricola "De re metallica"
1556
Woodcut
Basle
Date
1556
Credit line
Photo12/Ann Ronan Picture Library
Reference
ARP07095_390001489
License type
Rights managed
Available size
21,4Mb (2,6Mb) / 7,0in x 11,8in / 2108 x 3543 (300dpi)
