Title

Inclined plane powered by water wheel in use on a canal

Caption

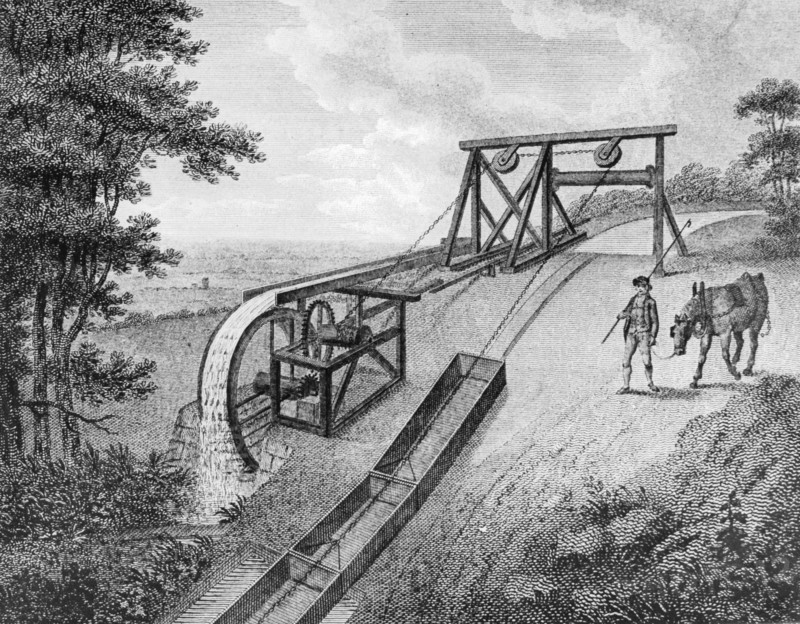

Inclined plane powered by water wheel in use on a canal. 1796. The inclined plane was used to transfer vessels, in this case tub boats, from one level of a canal to another and was an alternative to a lock. The example shown was considered suitable for smaller canals with rise of 20-30 feet (6-9m). From "A Treatise on the Improvement of Canal Navigation" Robert Fulton, (London 1796). Engraving.

Info+

Photos12.com - Ann Ronan Picture Library

Credit line

Photo12/Ann Ronan Picture Library

Reference

ARP07104_460001048

License type

Rights managed

Available size

28,0Mb (2,6Mb) / 11,8in x 9,2in / 3543 x 2765 (300dpi)
