Title

Inclined planes for use on canals

Caption

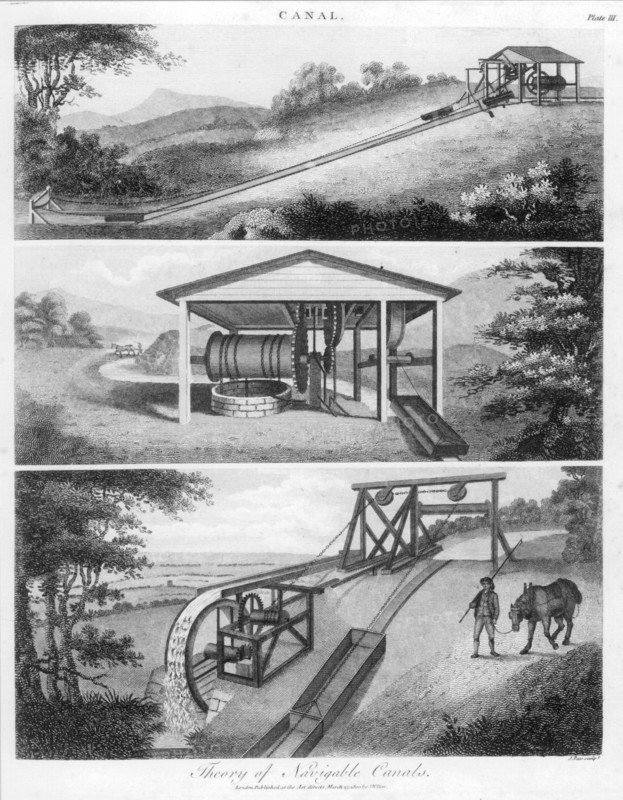

Inclined planes for use on canals. 1800. Top: Double inclined plane Middle: Upper works of single inclined plane. Bottom: Upper works of medium inclined plane powered by a water wheel. The inclined plane could be used to transfer vessels, in this case tub boats, often of iron, from one level of a canal to another without the expense of a flight of locks which could make the building of a canal uneconomic. Plate based on engravings in "A Treatise on the Improvement of Canal Navigation", Robert Fulton, (London, 1796). Engraving.

Info+

Photos12.com - Ann Ronan Picture Library

Credit line

Photo12/Ann Ronan Picture Library

Reference

ARP07104_460001049

License type

Rights managed

Available size

28,0Mb (2,3Mb) / 9,2in x 11,8in / 2761 x 3543 (300dpi)
