Man-engine or movable ladder adopted in Cornish mines
Légende

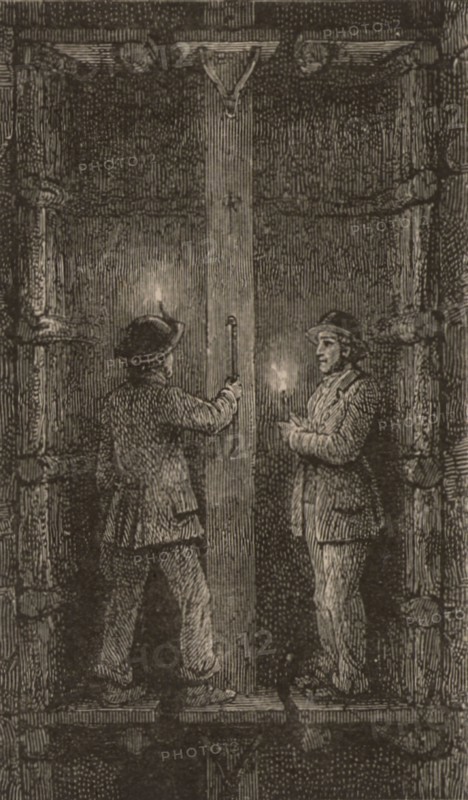

Man-engine or movable ladder adopted in Cornish mines. The movable ladder was powered by the steam engine at the pit head and moved with the regular stroke of the engine. In this model either side of the shaft is fitted with platforms a stroke' length apart. A man standing on one of the side platforms would step on the platform on the man-engine in the pause between strokes. Before the installation of man-engines, it could take men more than an hour to climb down vertical ladders to reach the working level. From "The Popular Encyclopaedia" (London, 1888).
Date
1888
Crédit
Photo12/Ann Ronan Picture Library
Notre référence
ARP07112_009780P
Licence
Droits gérés
Format disponible
21,0Mo (1,2Mo) / 17,5cm x 30,0cm / 2072 x 3543 (300dpi)
