Evolution of the airfoil, 1908-1944. Creator: Unknown.

Légende

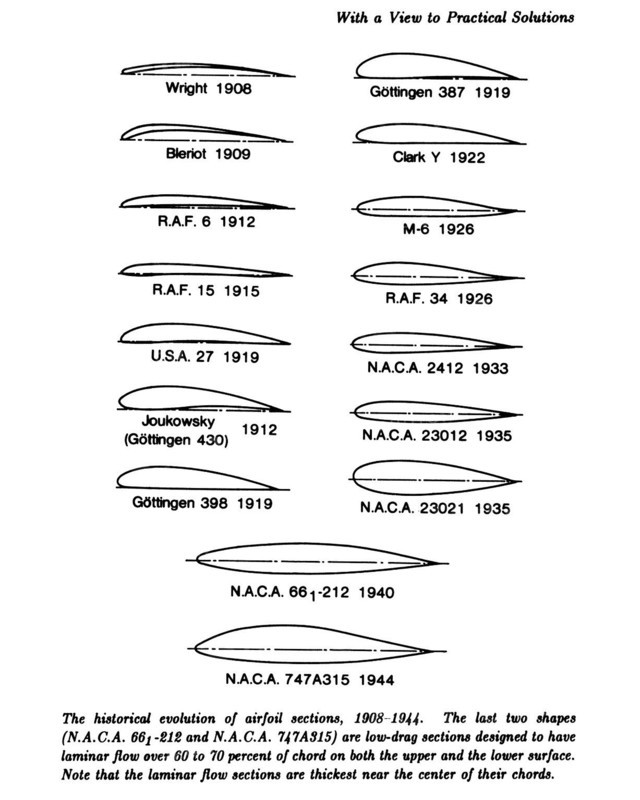

Evolution of the airfoil, 1908-1944. Diagrams showing the historical evolution of airfoil sections. The last two shapes are low-drag sections designed to have laminar flow over 60 to 70 percent of chord on both the upper and lower surface. Examples illustrated include designs by the Wright Brothers, the Aerodynamics Research Institute in Göttingen, Louis Bleriot, the Royal Air Force, and the National Advisory Committee for Aeronautics.

Crédit

Photo12/Heritage Images/Heritage Space

Notre référence

HRM21B20_292

Model release

Non

Property release

Non

Licence

Droits gérés

Format disponible

5,4Mo (243,8Ko) / 10,4cm x 13,0cm / 1229 x 1536 (300dpi)
